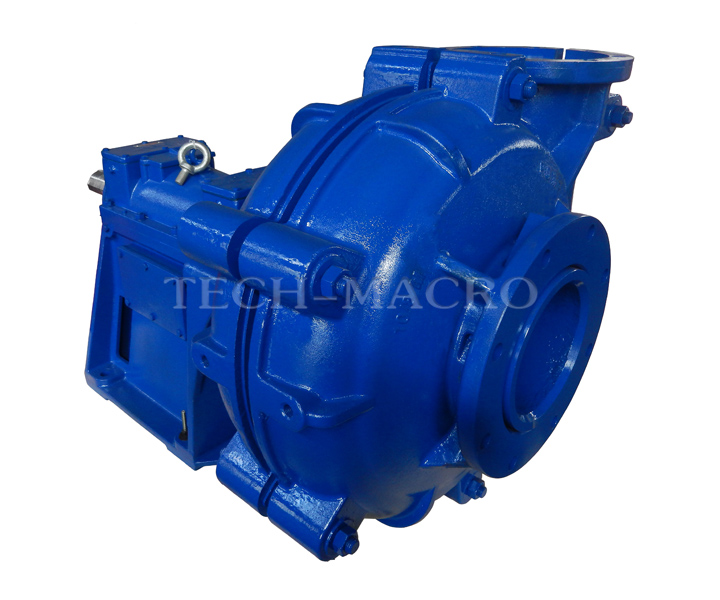

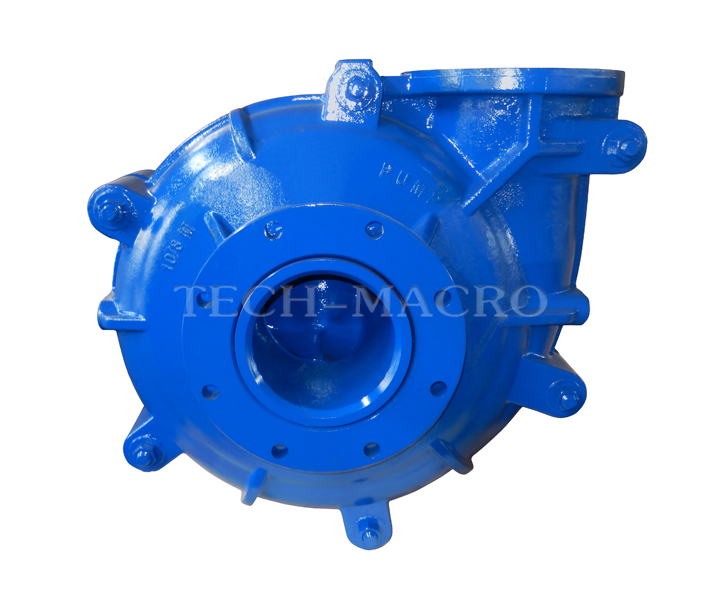

KM Series Centrifugal Slurry Pump

Model：KM Series
Head: 10--68 m
Capacity: 200--1600 m3/h
Pump type: Horizontal centrifugal
Media: Slurry
Material: Metal, rubber, ceramic,etc

Enquiry Now

1. Description:

Type KM series slurry pump is designed for transporting liquid containing suspended solid particles, or the high hardness, strong corrosive and high density slurry.

Typical Application:

● Iron, cooper or phosphorus mineral processing
● Cyclone feeding
● Removing ash in power plant
● Flue gas desphurization in power plant
● Flushing steel mill blast furnace cinder
● Removing ash in power plant
● Ball grinding mill ore discharging
● Other wear-resistant and anti-corrosive working conditions

2. Features:

● High efficiency, wear resistant, stable performance, interchangeability of parts; excellent hydraulic model.
● Replaceable wear-resistant metal or rubber liners, impellers&volute liners are made of wear-resistant materials(such as A05, A49,and other high chrome metal or rubber).
● Bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
● The impeller can be 2--6 blades ones, making the pump more effective. And the pump can achieve in excess of 87% in the best efficiency area,
● Shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use expeller seal accompany with packing.
● The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
● This pump can be installed in multistage series to meet the delivery for long distance.
● Drive types: direct coupling drive(DC), V belt drive(CR, CV, ZV, CL), etc.

1. Operating Limits

● Outlet Diameter：25-450 mm(1--18 inches)
● Flow：200--1600 m³/h
● Head：10--68 m

2. Materials:

Materials Options
Construction	Standard	Optional
Wet end parts (Liners,Impellers)	High chrome alloy (A05, A07, A08，A09，A11, A49, A33, A61……); Natural rubber (R26, R24, R55......); Synthetic rubber(S01, S12, S21, S42......) Composite ceramics Polyurethane	The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.

3. Performance Chart:

Note: Approximate performance of clean water and only for primary model choice.

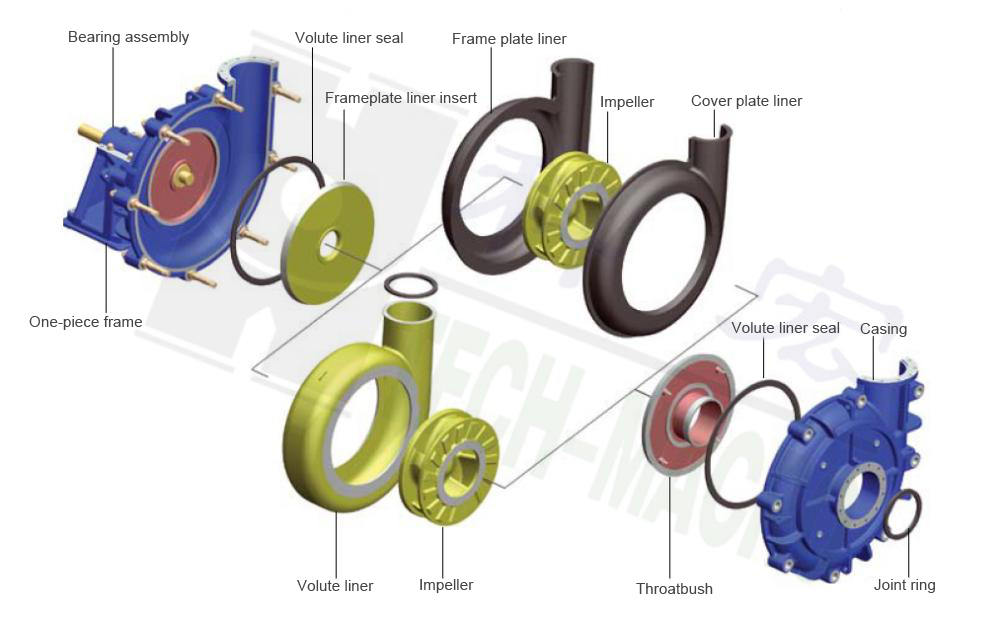

Structure
